Description
- Comfort-Trac front and rear suspension
- Durable and stylish rear bumper
- Easily accessible tie down points (for transport of unoccupied scooter)
- Easily adjustable tiller
- Easily charge the batteries on or off the unit
- Pride’s exclusive black, flat-free, non-scuffing tires
- Seat designed for extreme comfort
- Standard front basket
- Ultra heavy-duty drivetrain with 70 amp controller
- User-friendly console
- USB mobile device charging port
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
| Model | Revo 2.0 3-Wheel |
| HCPCS Code | K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria |
| Weight Capacity | 400 lbs. |
| Front Tire | 3″x8″ |
| Rear Tires | 3″x9″ |
| Maximum Speed | Up to 5.2 mph |
| Ground Clearance | 3.25″ at mid-frame |
| Turning Radius | 40″ |
| Length/Width | 46″/20.75″ |
| Seating | Compact,Foldable, Black Vinyl 20″w x 18″d |
| Seat-to-Ground | 22-23.5″ |
| Weight (w/Batteries)3 | 170 lbs. |
| Seat-to-Deck | 15″-16.5″ |
| Battery Weight4 | 25 lbs. each |
| Battery Requirements | (2) U1 Batteries |
| Per Charge Range1,2 (Max.) |
Up to 17.4 Miles (200 lbs) Up to 12.8 Miles (400 lbs) |
| Battery Charger | 3.5 amp |
| Suspension | Front and rear |

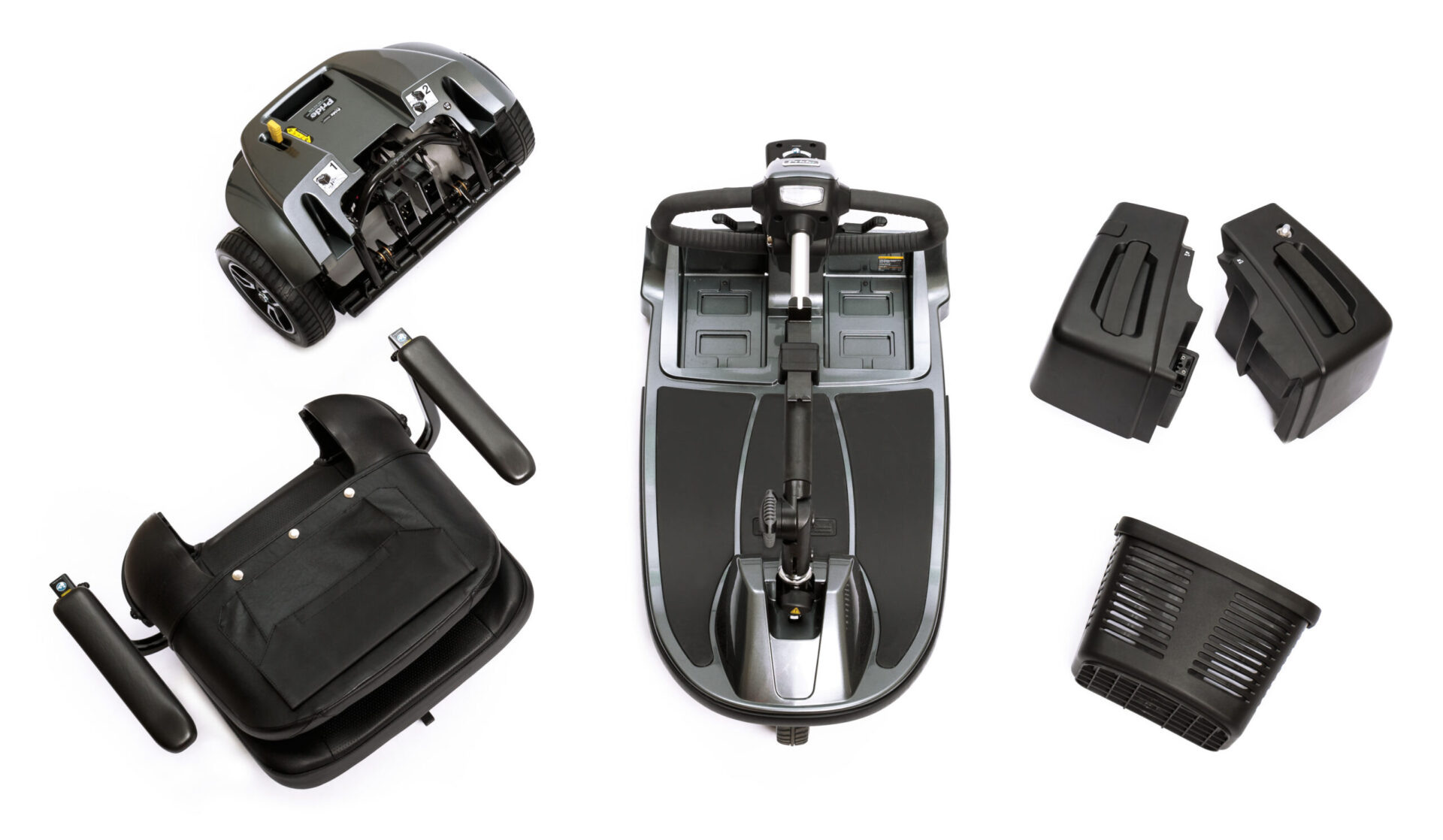

| Weight of Heaviest Piece3,5 | 48 lbs. (rear section) |
| Warranty | Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain |
| Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. |
|
